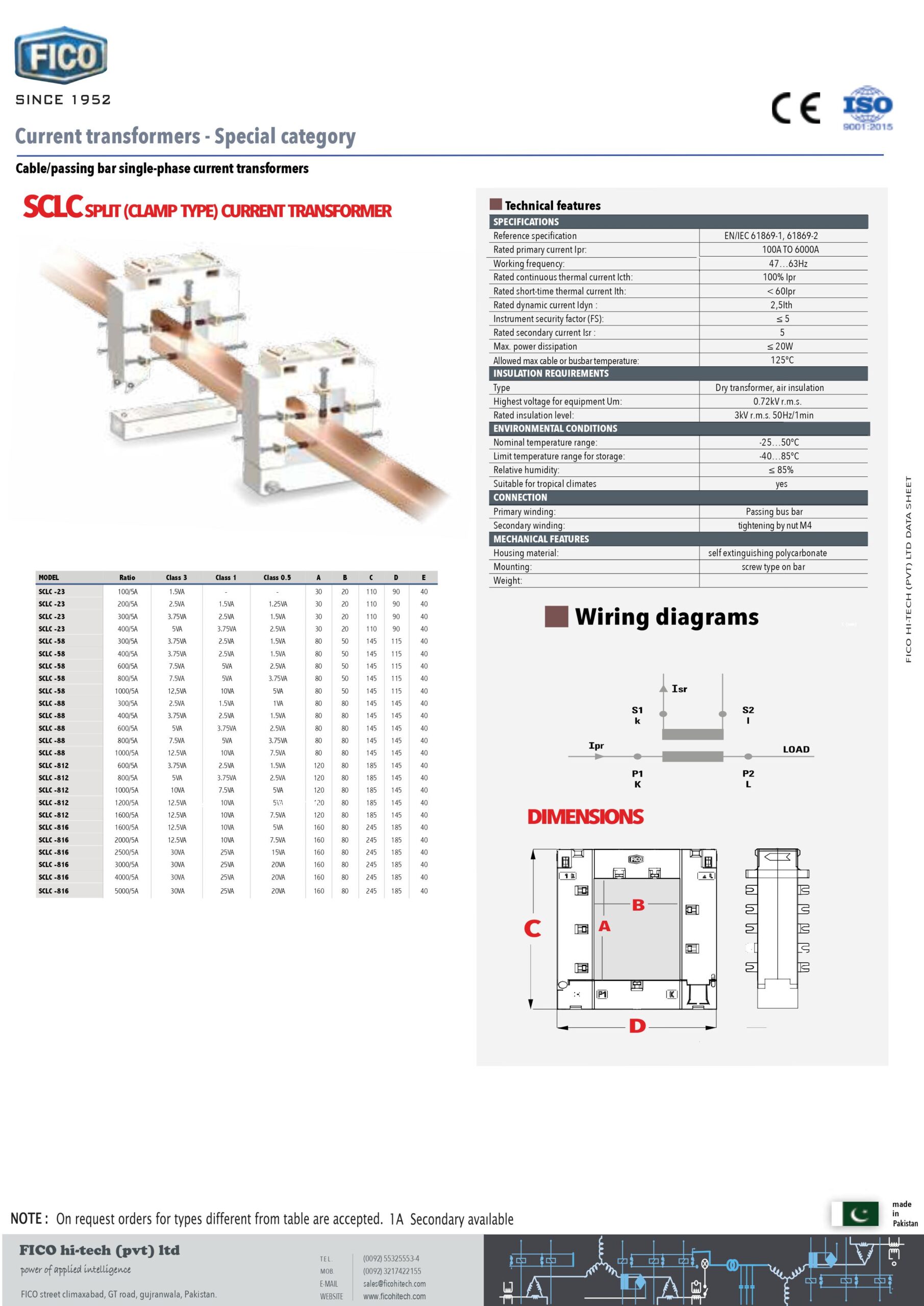

DESCRIPTION
THE SPILT CORE (SC) SERIES CURRENT TRANSFORMER HAS BEEN SPECIALLY DESIGNED TO FACILITATE THEIR INSTALLATION IN NEWOR ALREADY EXISTING NET WORKS. THEY MAY BE INSTALLED WITHOUT OPENING ANY CABLE OR BUS-BAR CIRCUIT. THE CONNECTION OF CONVENTIONAL CTS USUALLY REQUIRES THE INTERRUPTION OF THE PRIMARY SIDE CURRENT TO PASS CABLES OR BUS-BAR THROUGH THE TRANSFORMER CORE TO CONNECT SUCH CABLES TO THE PRIMARY TERMINALS.
FEATURE
TWO BUILT IN FIXING METHODS: PANEL/BUS-BAR
VERY EASY TO INSTALL
WIDE INNER WINDOW, ALLOWING CLAMPING OF BIG CABLES OR BUS-BARS
WIDE RANGE OF SIZE TO ACCOMMODATE ALL THE EXISTING INSTALLATION
PRIMARY CURRENT FROM 5A TO 5000A
SPECIFICATIONS
RATED FREQUENCY 50/60HZ
RATED TEST VOLTAGE 3KV AC. (1 MIN)
RATED SHORT-TIME THERMAL CURRENT (LTH) 60LN
Rated
DYNAMIC CURRENT (LDYN) 2.5LTH
RATED VOLTAGE (UM) 0.72KV AC.
CONTINUOUS OVERLOAD (LD) 1.2LN
OPERATING TEMPERATURE -10 C ~ 50 C
HOUSING SELF-EXTINGUISHING CLASS VO
SAFETY FACTORY FS 5
SECONDARY CURRENT 5A/1A
STANDARD
IEC 60044-1 GB1208-2006
